Sandwich Mountings
are manufactured in four standard sizes known as GR
121/1, GR 121/2, GR1 121/3, GR 121/4. The physical
dimensional specifications & rubber specification suits
a very vide range of application. The colour code
represents the maximum loading capacity as well as
hardness. The sandwich mounting are very much suitable
for direct compression at various inclination Rubber to
metal bondings permits the mountings to be used either
in compression, shear or a combination of both. |
 |
|
|
The
sandwich moutings are used for sound chamber, hopper heavy
installation carriages, construction and suspending the
small automobile engine etc. Sandwich mounts are designed to
support heavy & sensitive equipment & intermittent or
continuous vibrations are eliminated. This mounts are easy
to installed & it performance results in longer service
life smoother maintenance operation & reduced maintained. |
|
GR

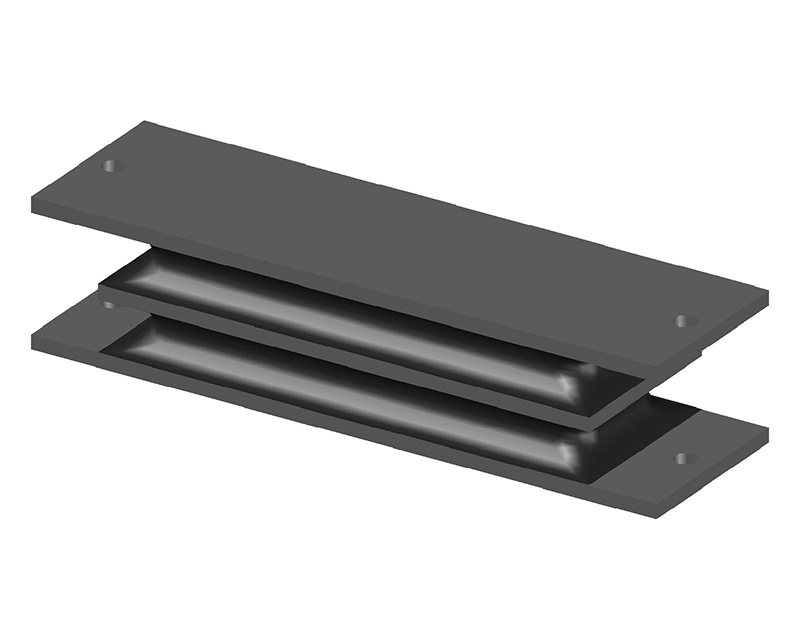

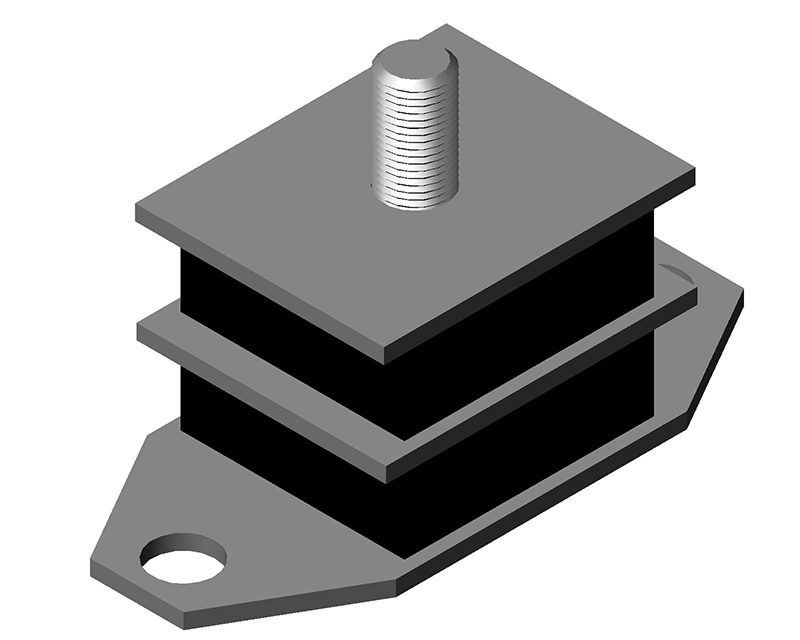

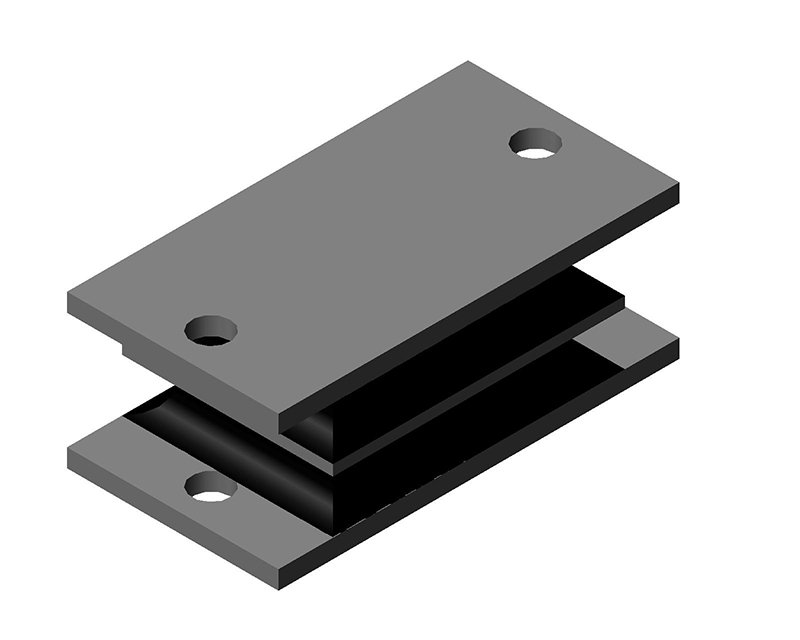

BOND SANDWICH MOUNT RECTANGULAR MOUNTINGS GR-121,GR-122, GR-123,GR-125,GR-126,GR-127 |
|
Rectangular mountings also known as
sandwich mountings and are widely used for mounting engines in road
vehicles & mobile construction plant. Rubber in mountings is bonded
between two metal plates with holes at each end for fitting. Some
designs incorporate steel interleaves for increased load capacity.
The mountings are best used in shear & compression but may be loaded
directly in shear & compression. |
|
DESIGN FEATURES. |
 |
Moulded in first
grade first grade Natural Rubber. |
|
|
Steel metals, etch & primed
on external surfaces |
|
|
Rectangular mountings should
not be used in tension or exposed to contamination by mineral
oil. |
|
|
TYPICAL APPLICATION |
|
|
Lift head gear. |
|
|
Engine mountings
on road vehicles. |
|
|
Mobile construction plant. |
|
|
Hoppers |
|
|
Heavy plants |
|
|
Conveyor system. |
|
| |
|
