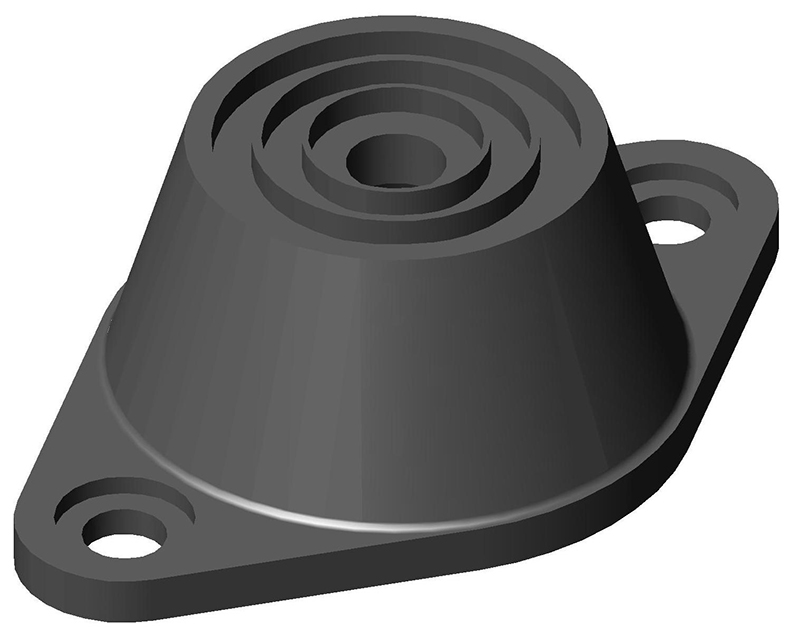

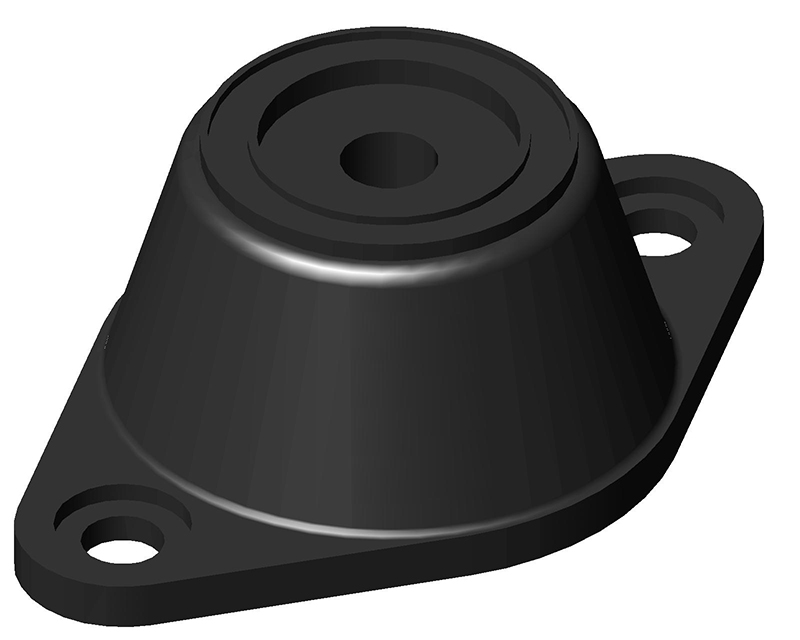

GR BOND COMBIMOUNTS are suitable for
vide range of machineries. The COMBI MOUNTS are in compact
design & in economical range. They are ideal for mobile
application because of “Fail safe” features. The Combi
mounts are available in three sizes having different loading
capacity. These mounting are in service for more than ten
years.
Combi mount are specially design for the protection of
equipment from high impact shocks medium to high frequency
vibration & barrier against structure borne noise in any
field such as communication, electronics, vehicles, Air
Crafts, Mobile installation, Marine application etc.
DESIGN FEATURES
Steel Components
are zinc plated.
Resilient
elements are first grade Natural Rubber to metal bonded units.
Loading the rubber elements in a
combination of shear & compression provides the optimum balances
between high load capacity & low stiffness.
Rubber elements are contained & protected
within top & base metals. The shape of the top & the rubber
elements are designed to increase stiffness & control movement
under overload condition.
Low height
compact units, ideal for use where space in limited.
TYPICAL APPLICATION
Control
Cabinets.
Hydraulic Pump &
Motors
Rotary
Compressors
Small marine
Diesel propulsion engines & Generator sets.
